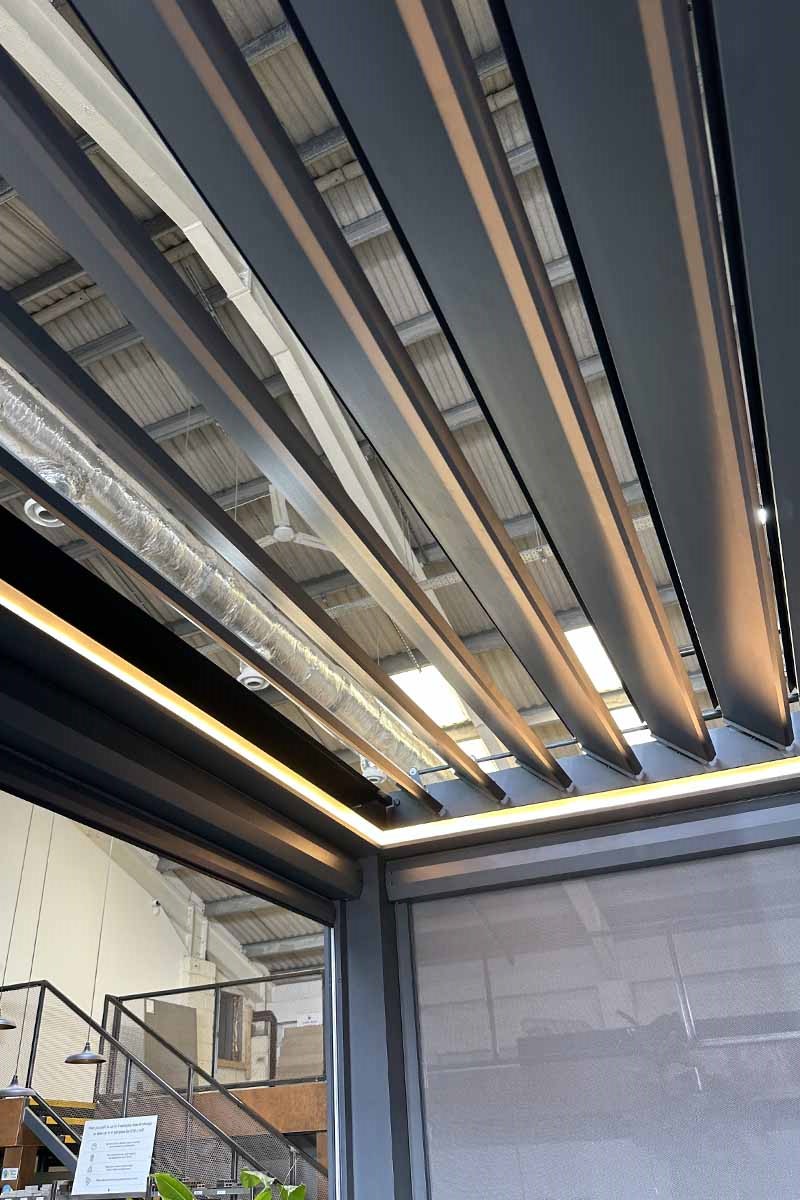

  • Deluxe Anthracite Grey Metal Pergola with LED lighting installed, creating a warm, inviting atmosphere, installed in showroom.
    Image for illustrative purposes only - displaying a 4x3 model*
  • Deluxe Anthracite Grey Metal pergola with blinds closed on 2 sides and LED lights on, in showroom setting, available in 5x3.
    Image for illustrative purposes only - displaying a 4x3 model*

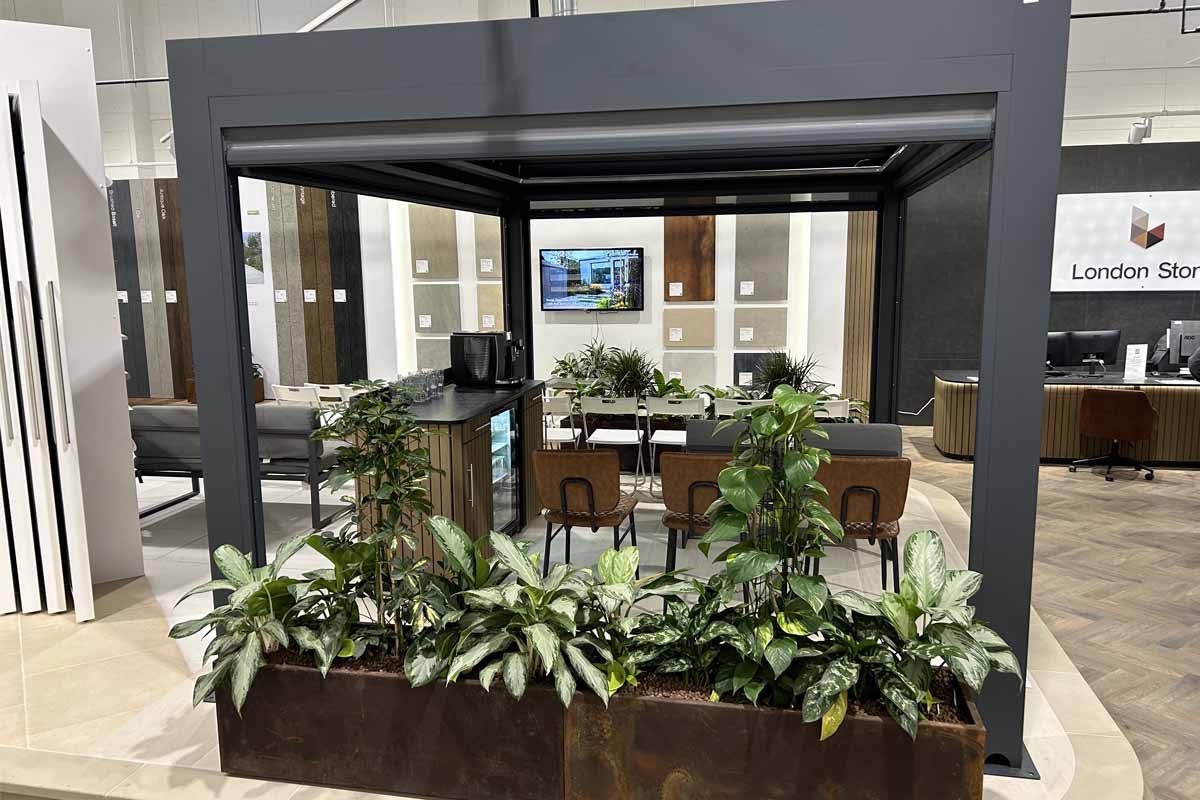

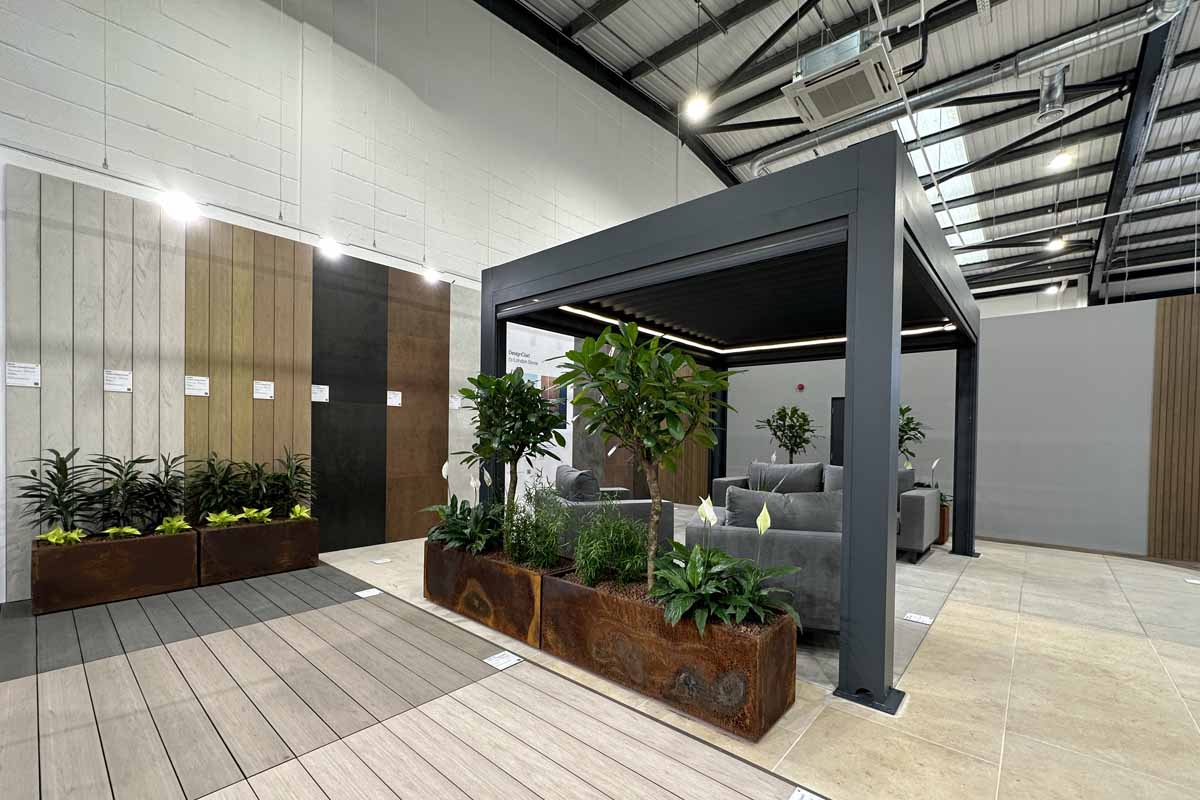

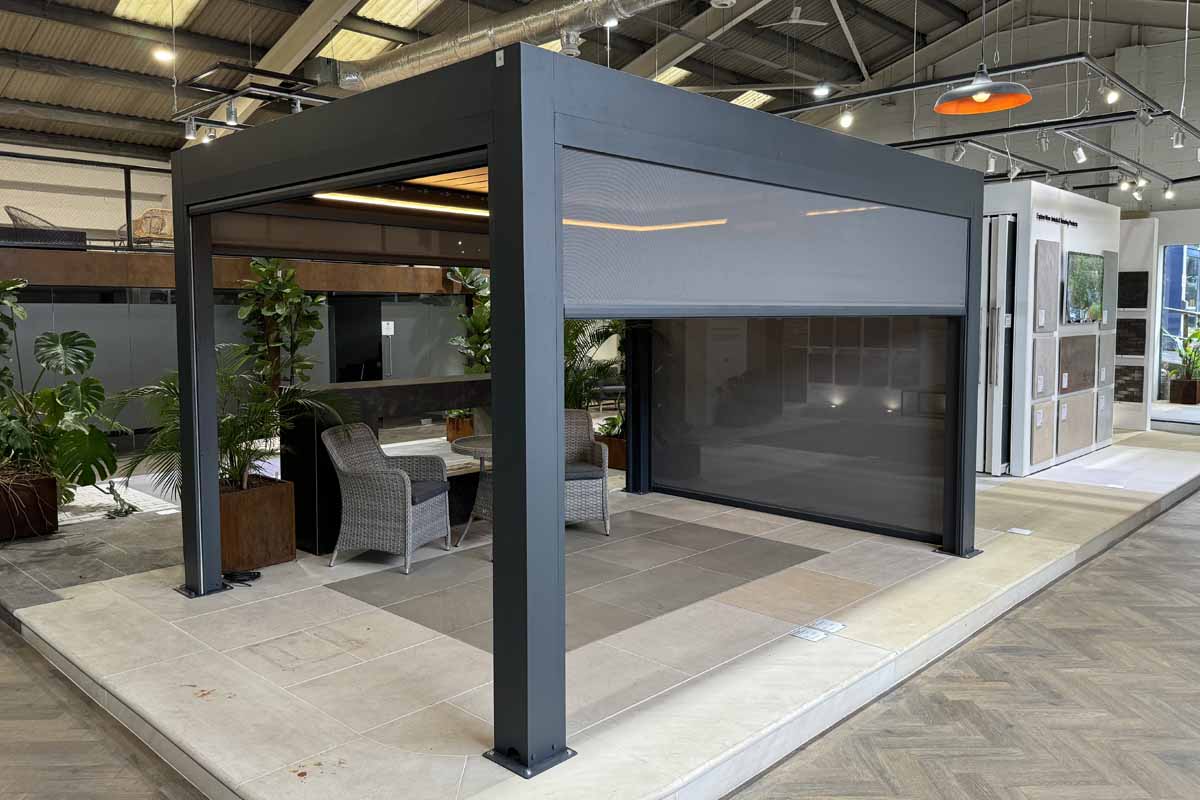

  • Anthracite Grey Deluxe Metal pergola standing in an open patio in a showroom, with motorised blinds for added privacy.
    Image for illustrative purposes only - displaying a 4x3 model*
  • Showroom setting sees Deluxe Metal Pergola with heaters installed, creating a cozy spaces for cooler evenings.
    Image for illustrative purposes only - displaying a 4x3 model*

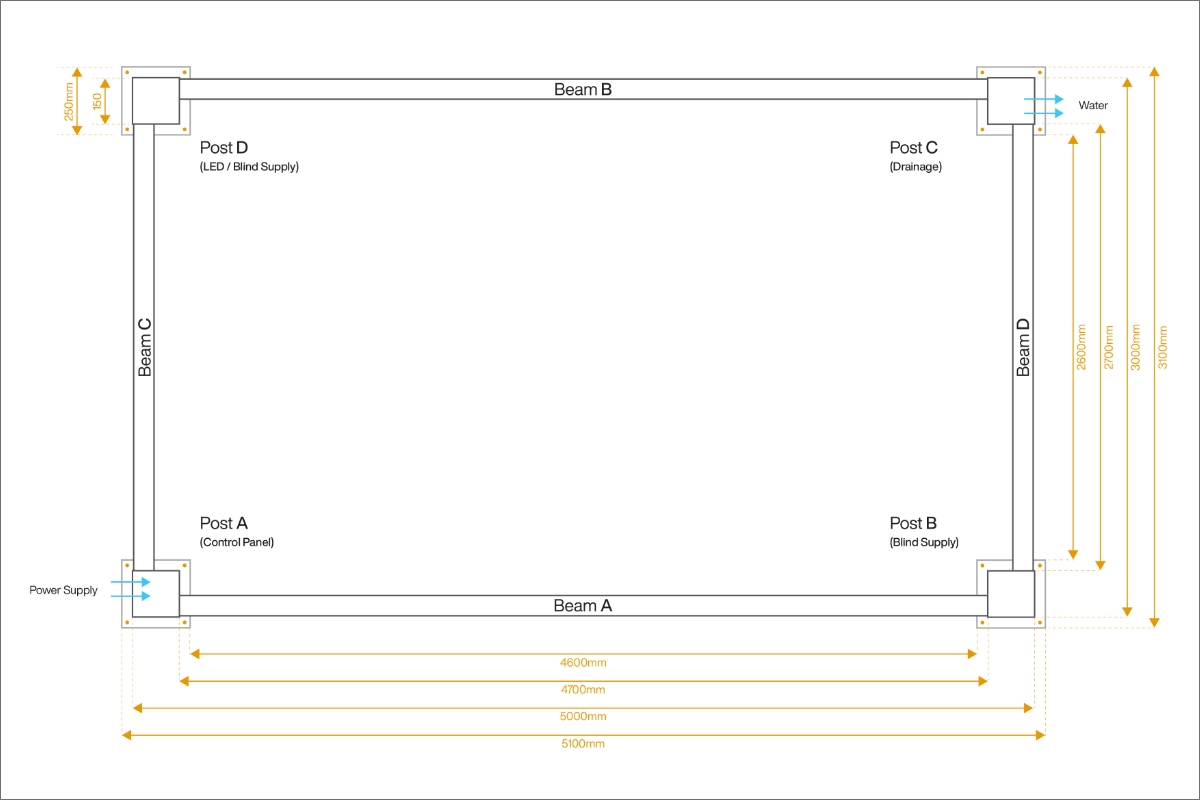

  • Detailed floor plan for a 5x3 Deluxe Pergola, illustrating dimensions, post placement, and structural layout.
    Image displaying a detailed floor plan for a 5x3 deluxe pergola.
  • Close-up of the Deluxe Pergola's 150mm wide vertical posts and 200mm thick horizontal beams, demonstrating its solid construction.
    Image for illustrative purposes only - displaying a 4x3 model*

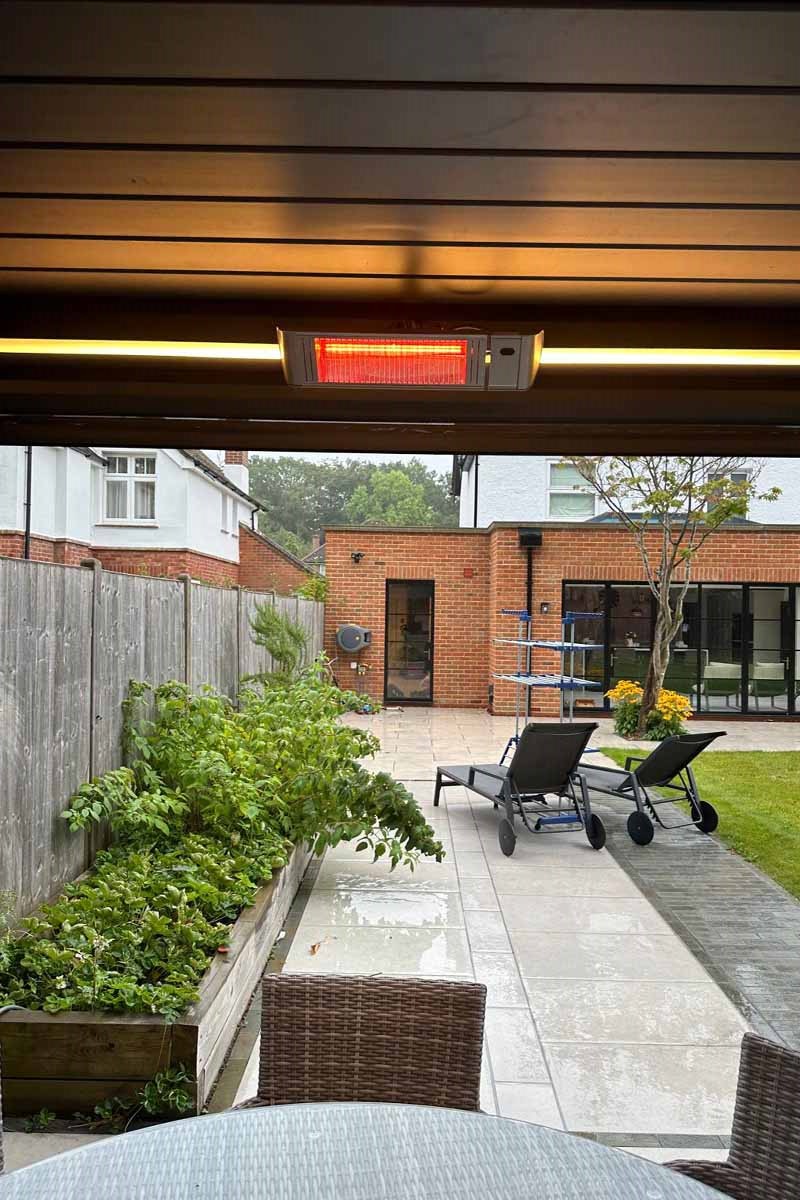

  • Deluxe Pergola with integrated heaters and LED lights, enhancing outdoor comfort in cooler weather.
    Image for illustrative purposes only - displaying a 3x3 model*

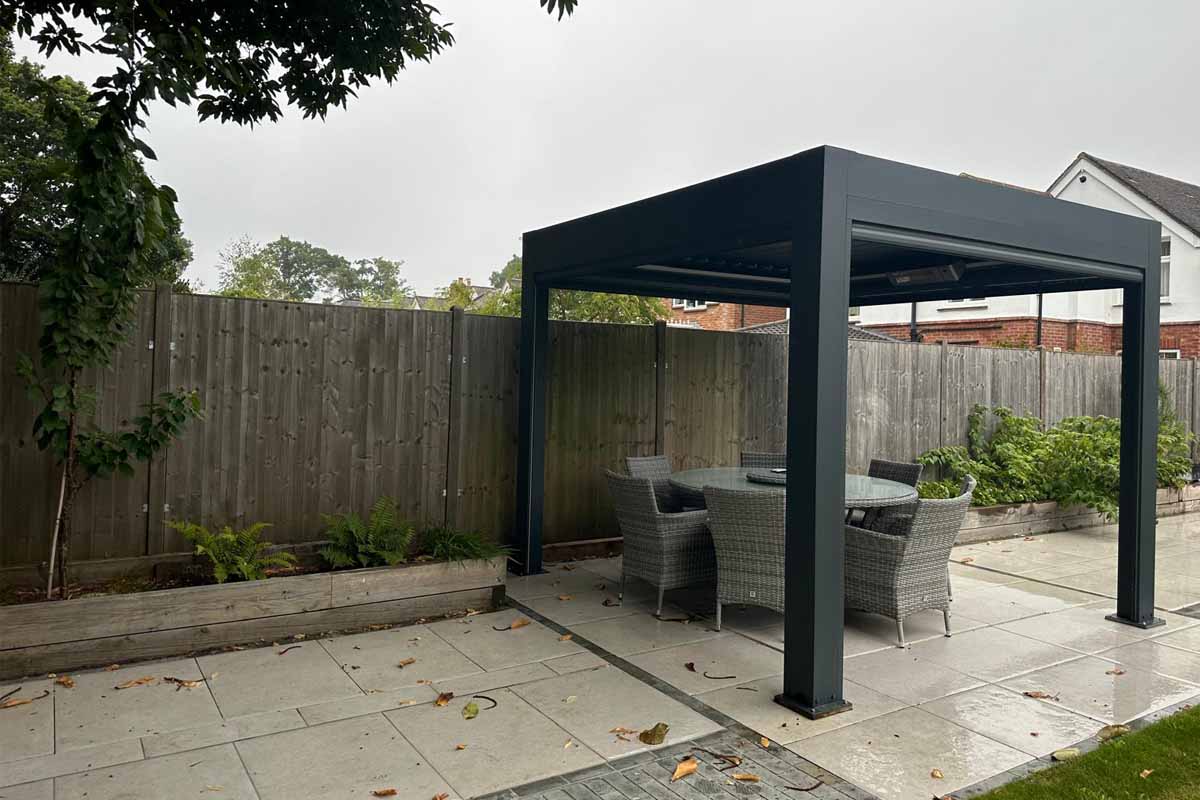

  • Deluxe Pergola in an open garden setting, providing a private shaded area with its remote-controlled blinds.
    Image for illustrative purposes only - displaying a 3x3 model*
  • Side view of the Deluxe Anthracite Grey Metal Pergola with one side blind down and the LED lights on display, available in 5x3.
    Image for illustrative purposes only - displaying a 4x3 model*

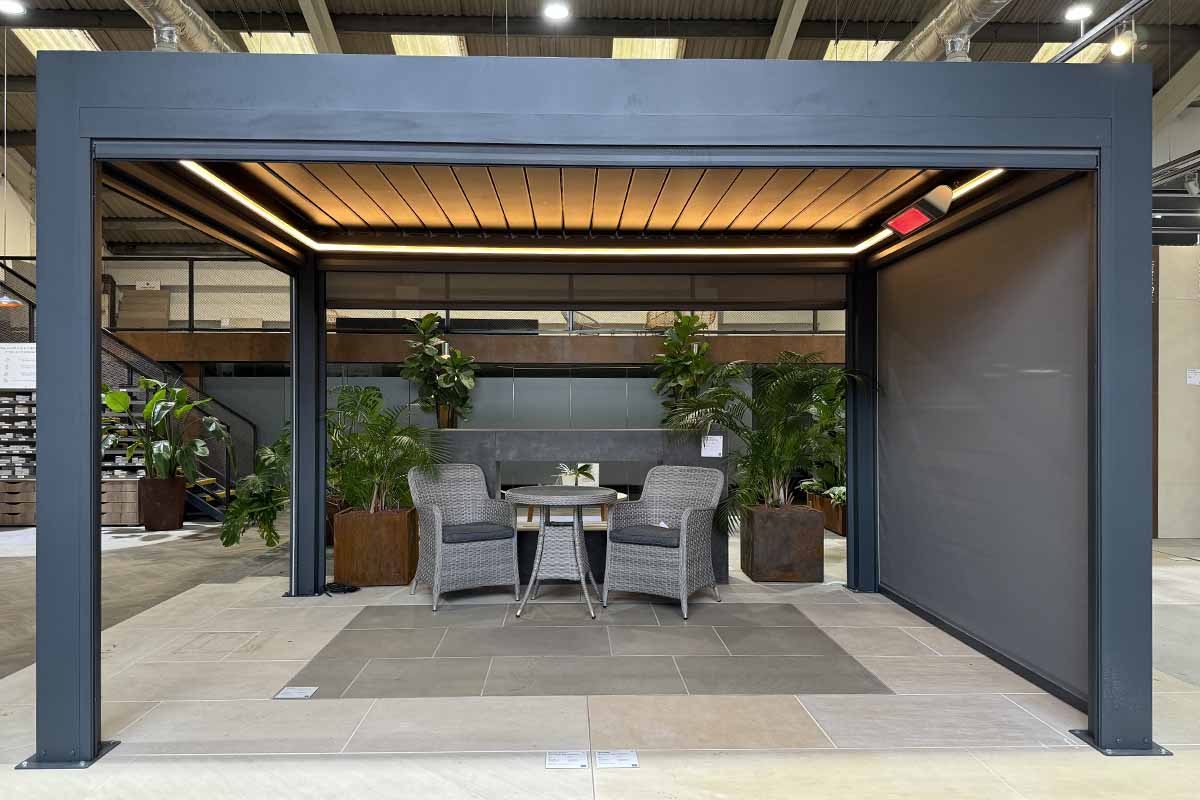

  • Deluxe Anthracite Grey Metal pergola installed with four motorised shade blinds in showroom setting.
    Image for illustrative purposes only - displaying a 4x3 model*

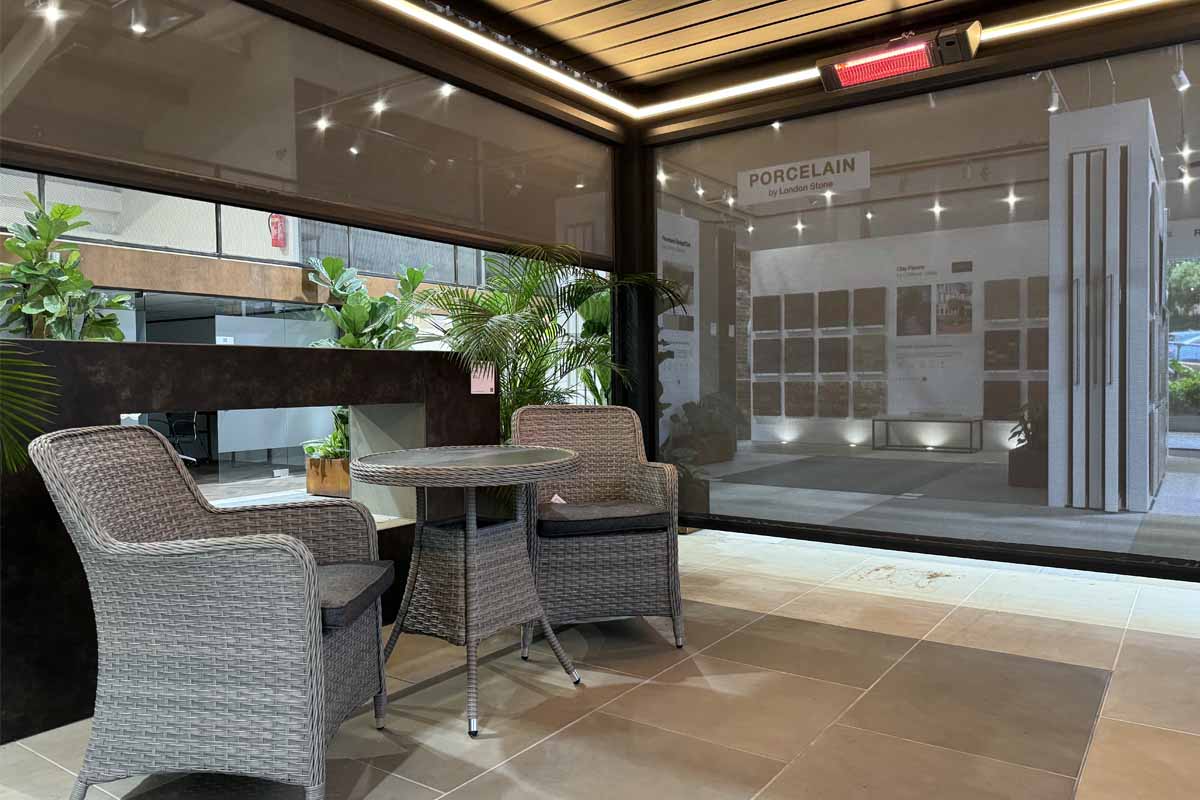

  • Deluxe Metal pergola installed in showroom with motorised blinds and heaters, offering year-round outdoor comfort.
    Image for illustrative purposes only - displaying a 4x3 model*

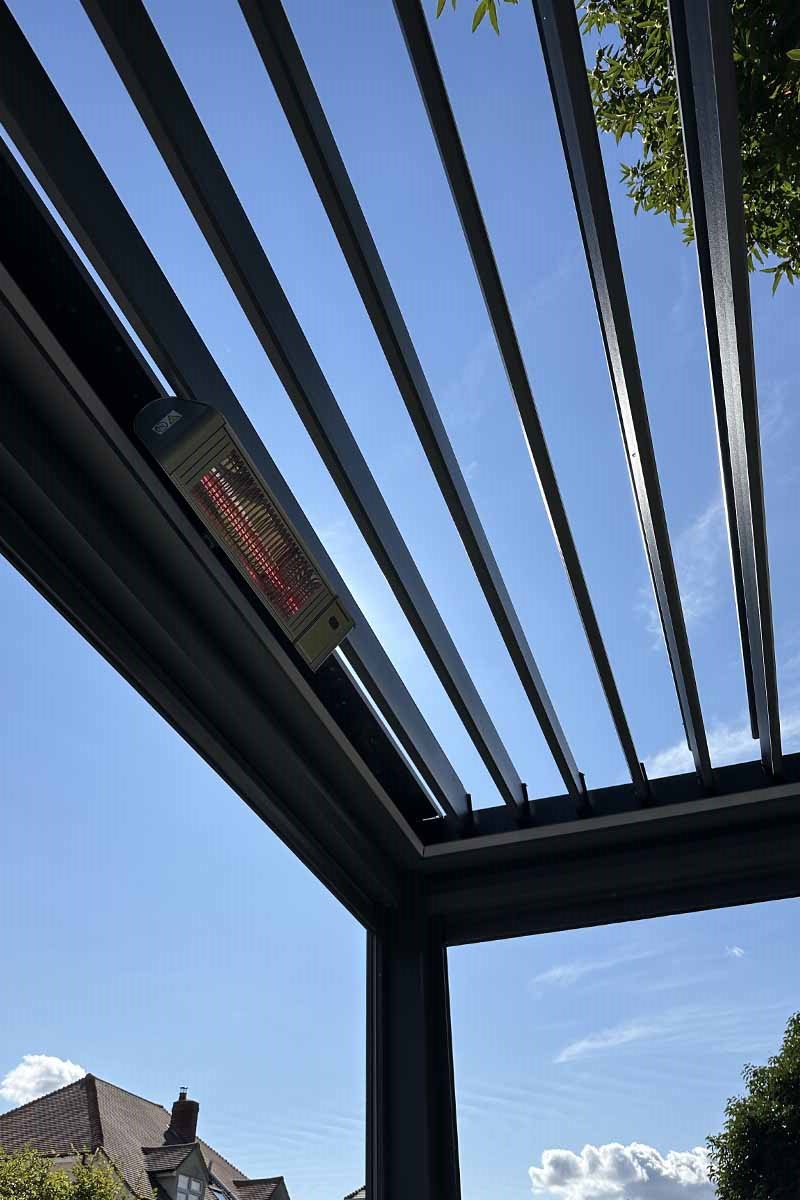

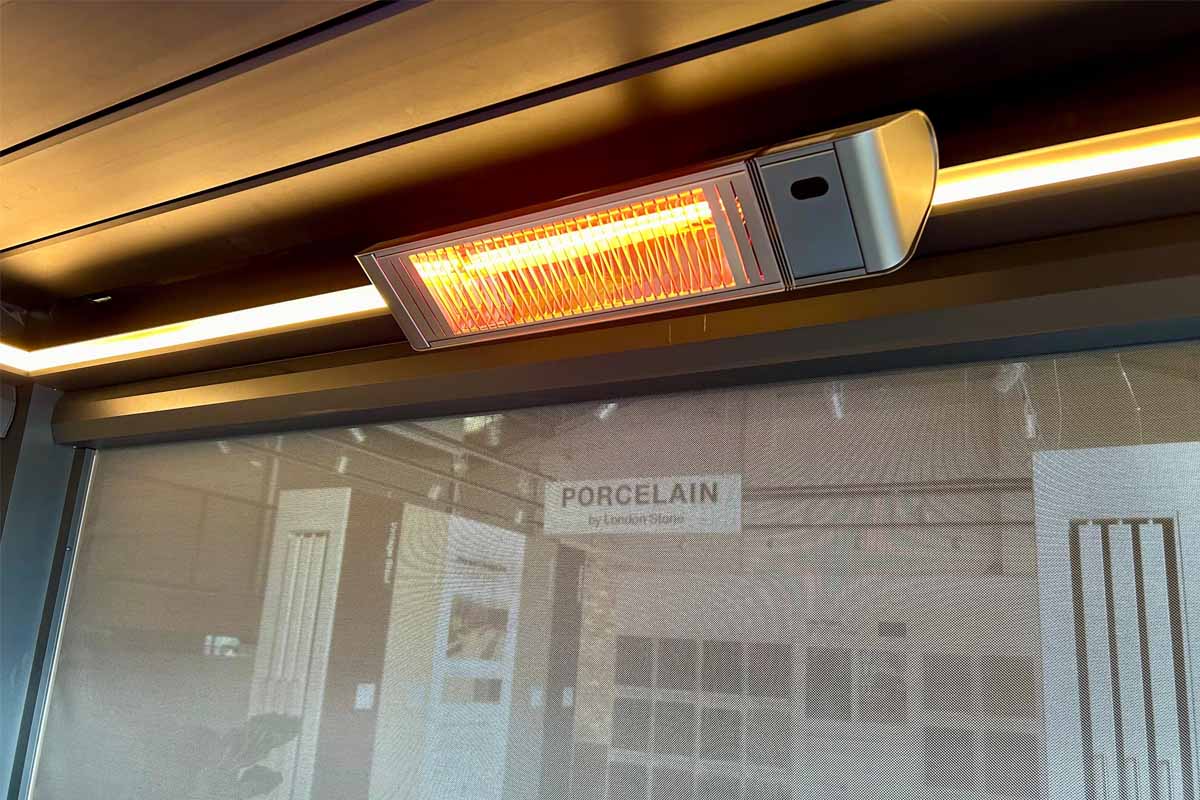

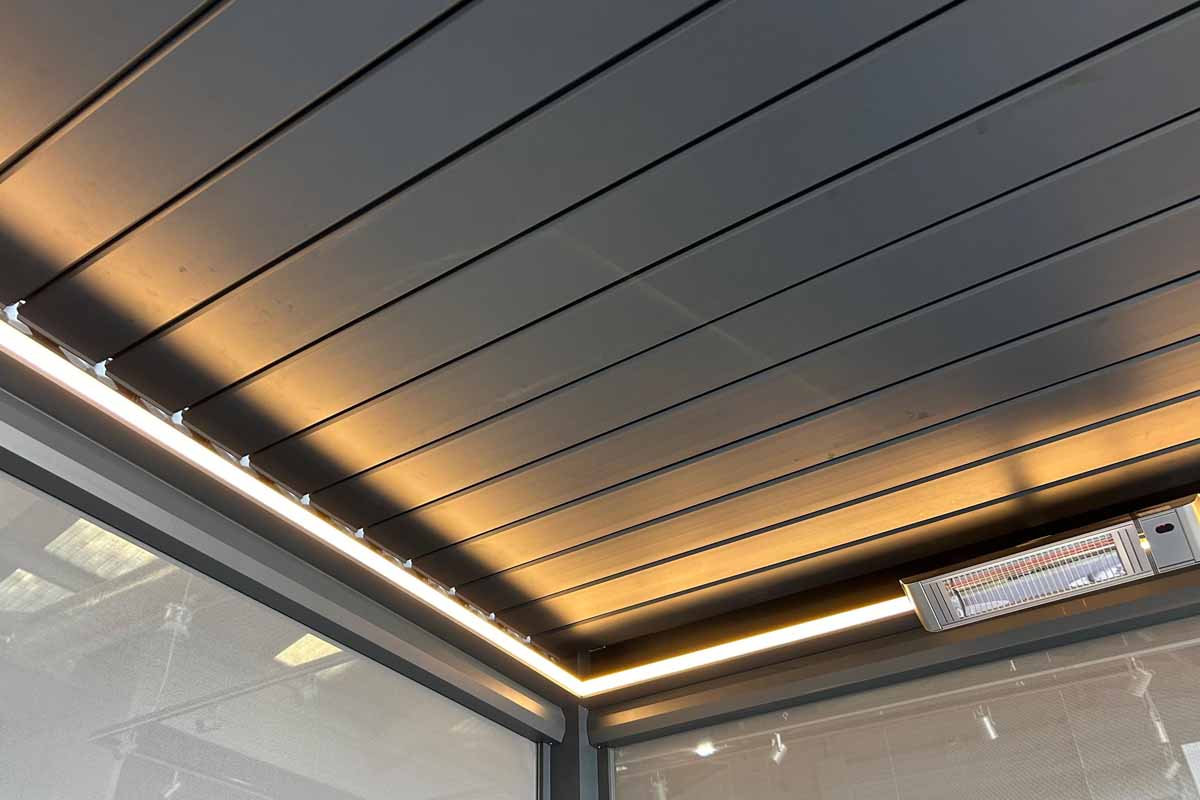

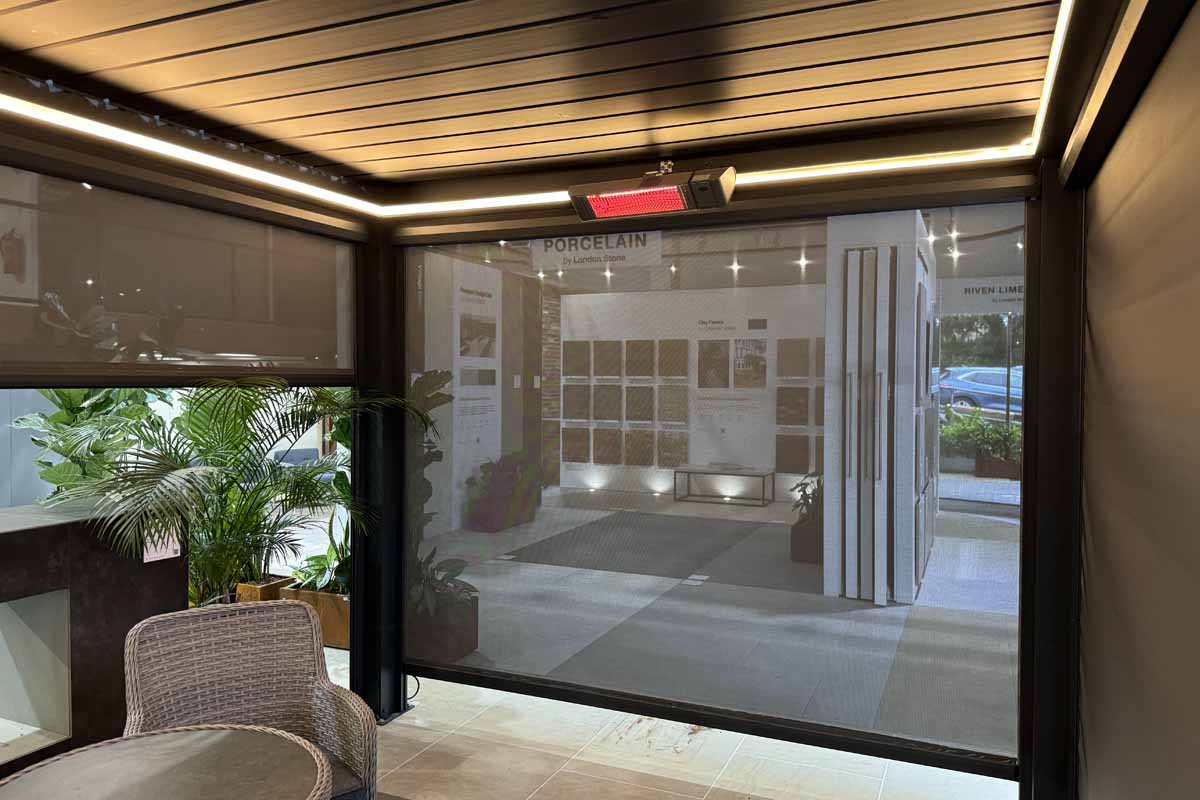

  • Close-up of the heater on inside the Deluxe Anthracite Grey Metal Pergola with the blinds down and louvres closed. Available in 5x3.
    Image for illustrative purposes only - displaying a 4x3 model*

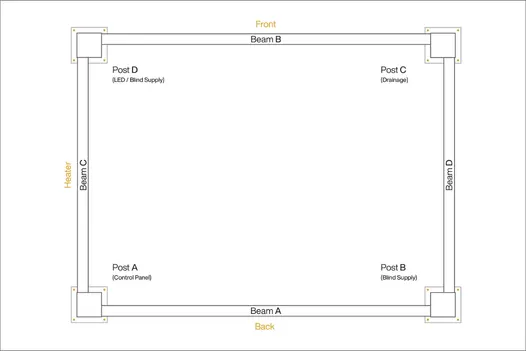

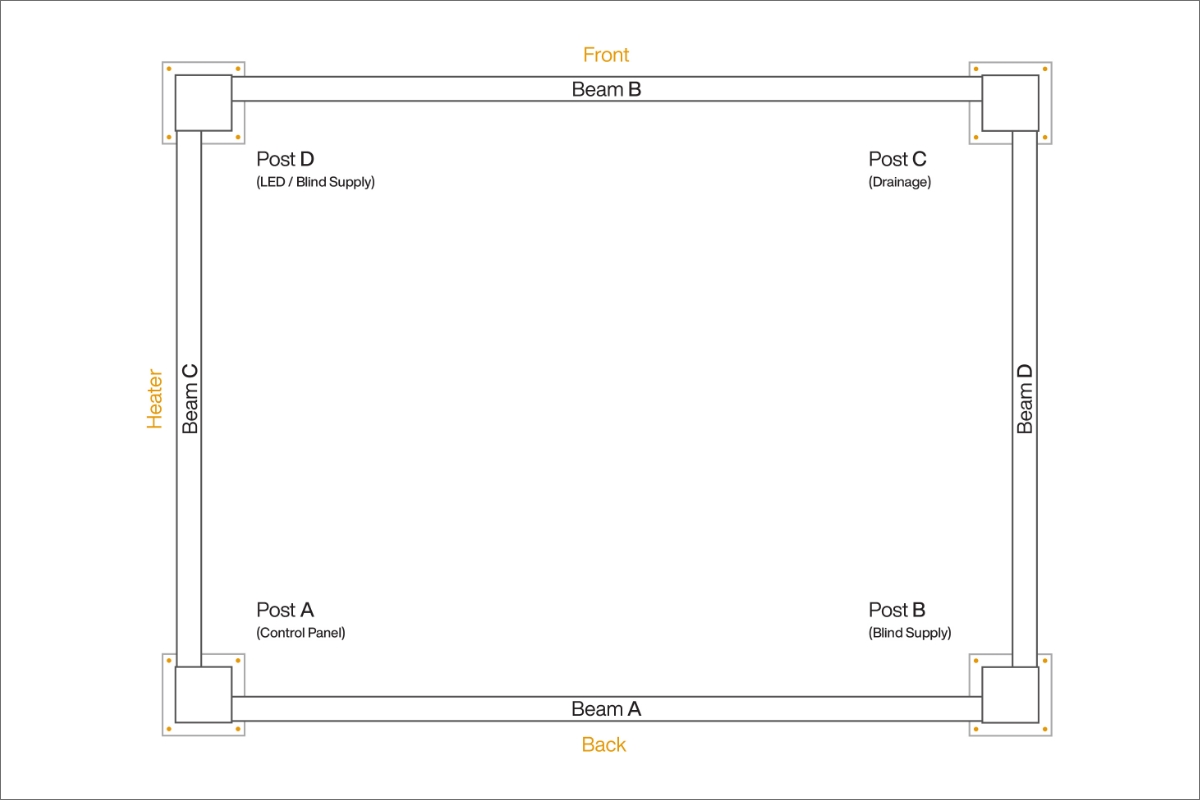

  • Location diagram showing recommended placement of the 5x3 Deluxe Pergola and how it can be positioned for optimal functionality and style.
    This diagram allows you to 'locate' the pergola in your garden, taking into consideration where your power supply

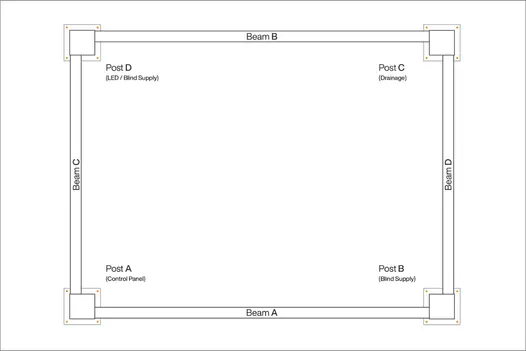

  • Diagram for blinds installation detailing how the blinds are mounted within the 5x3 Deluxe Pergola, indicating the positioning of posts and wiring for smooth operation.
    This diagram should help you in selecting the suitable blinds for your pergola, base

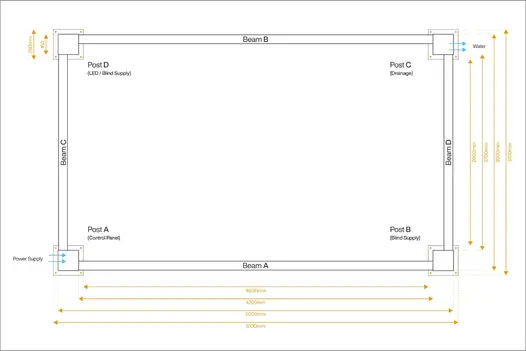

  • Floor plan of the 5x3 Deluxe Pergola with measurements, showcasing the spatial layout of the structure, including posts and roof louvres.
    Image displaying a detailed floor plan for a 5x3 deluxe pergola.

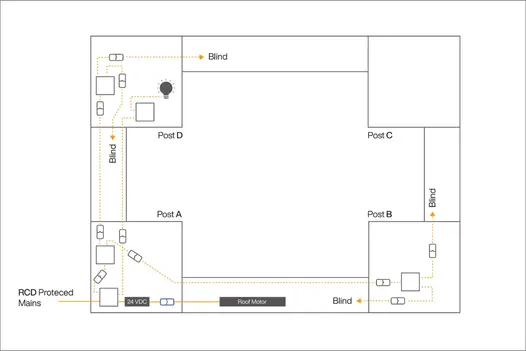

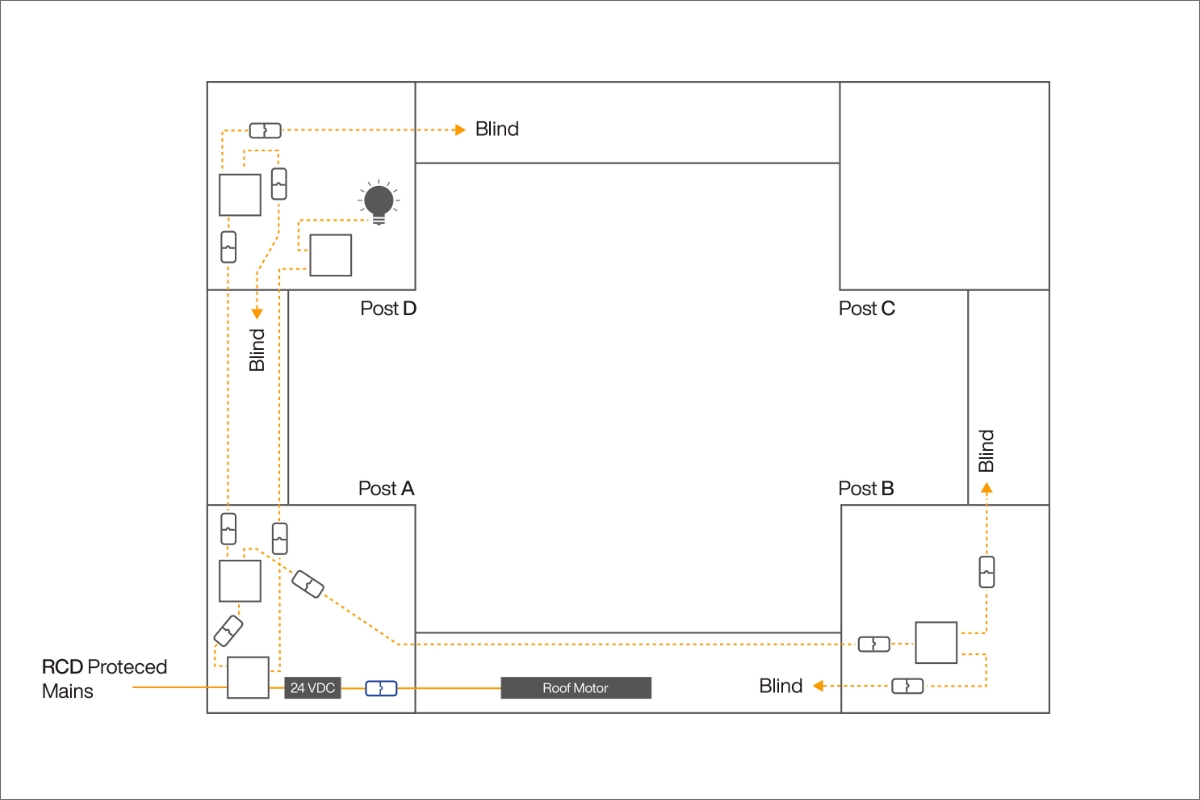

  • Diagram showing blind wiring installation for the 5x3 Deluxe Pergola, detailing where the electric supply is positioned within the structure.
    This diagram shows the wiring map for the blinds.

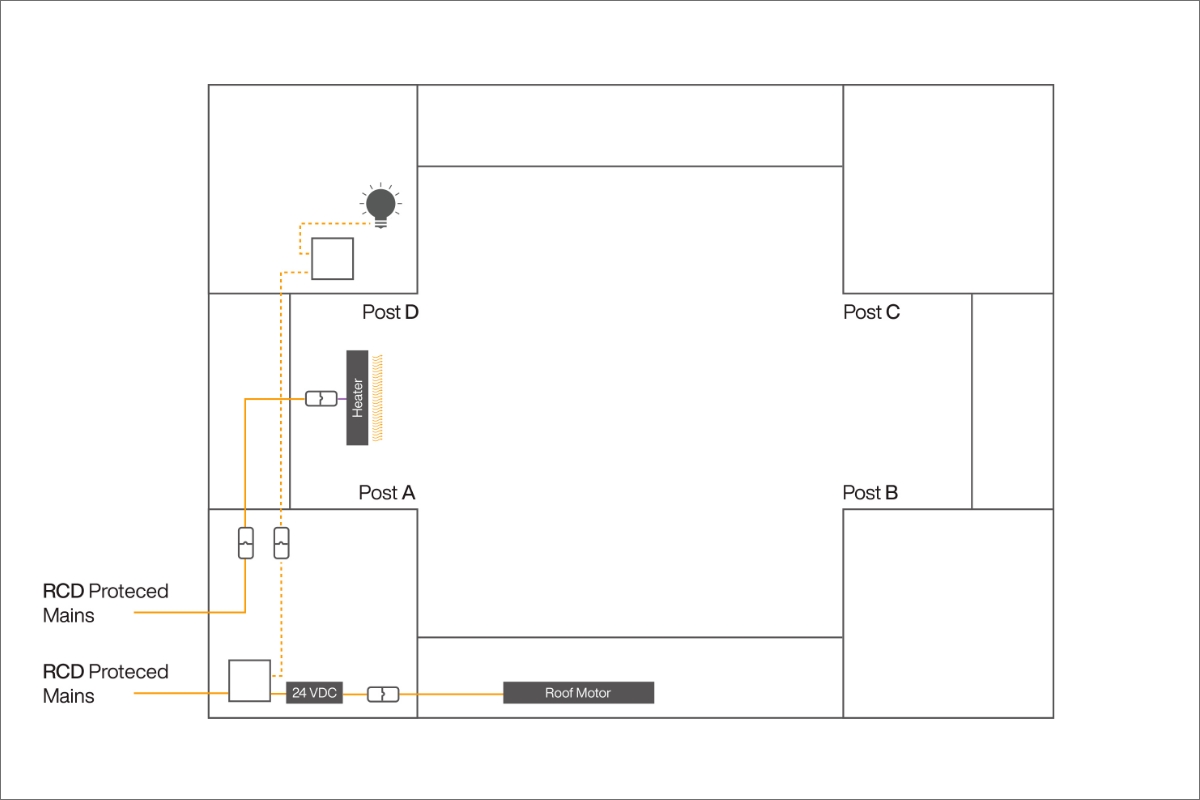

  • Diagram showing the wiring map for the 5x3 Deluxe Metal Pergola heater, detailing where the electric supply is positioned within the structure.
    This diagram shows the wiring map for the heater.

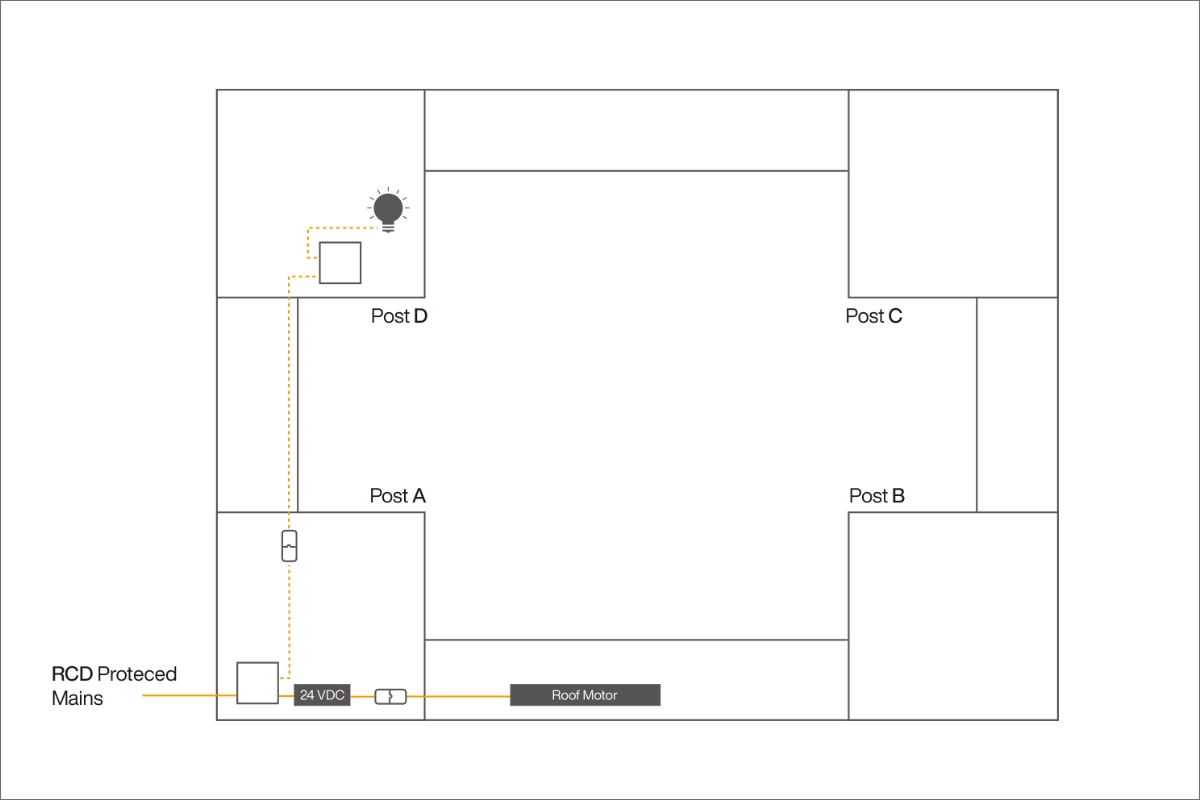

  • Wiring diagram for LED roof lights in 5x3 Deluxe Pergola, highlighting how the lighting system integrates into the pergola design.
    This diagram shows the wiring map for the roof.
  • Close-up of the Deluxe Anthracite Grey metal Pergola's open louvres, framing a backdrop of trees and blue skies, available in 5x3.
  • Deluxe Anthracite Grey Metal Pergola with LED lighting installed, creating a warm, inviting atmosphere, installed in showroom.
  • Deluxe Anthracite Grey Metal pergola with blinds closed on 2 sides and LED lights on, in showroom setting, available in 5x3.
  • Anthracite Grey Deluxe Metal pergola standing in an open patio in a showroom, with motorised blinds for added privacy.
  • Showroom setting sees Deluxe Metal Pergola with heaters installed, creating a cozy spaces for cooler evenings.
  • Detailed floor plan for a 5x3 Deluxe Pergola, illustrating dimensions, post placement, and structural layout.
  • Close-up of the Deluxe Pergola's 150mm wide vertical posts and 200mm thick horizontal beams, demonstrating its solid construction.
  • Deluxe Pergola with integrated heaters and LED lights, enhancing outdoor comfort in cooler weather.
  • Deluxe Pergola in an open garden setting, providing a private shaded area with its remote-controlled blinds.
  • Side view of the Deluxe Anthracite Grey Metal Pergola with one side blind down and the LED lights on display, available in 5x3.
  • Deluxe Anthracite Grey Metal pergola installed with four motorised shade blinds in showroom setting.
  • Deluxe Metal pergola installed in showroom with motorised blinds and heaters, offering year-round outdoor comfort.
  • Close-up of the heater on inside the Deluxe Anthracite Grey Metal Pergola with the blinds down and louvres closed. Available in 5x3.
  • Location diagram showing recommended placement of the 5x3 Deluxe Pergola and how it can be positioned for optimal functionality and style.
  • Diagram for blinds installation detailing how the blinds are mounted within the 5x3 Deluxe Pergola, indicating the positioning of posts and wiring for smooth operation.
  • Floor plan of the 5x3 Deluxe Pergola with measurements, showcasing the spatial layout of the structure, including posts and roof louvres.
  • Diagram showing blind wiring installation for the 5x3 Deluxe Pergola, detailing where the electric supply is positioned within the structure.
  • Diagram showing the wiring map for the 5x3 Deluxe Metal Pergola heater, detailing where the electric supply is positioned within the structure.
  • Wiring diagram for LED roof lights in 5x3 Deluxe Pergola, highlighting how the lighting system integrates into the pergola design.

Deluxe Anthracite Grey 5x3 Metal Pergola with optional blinds

from £400.00 + VAT Ea (£480.00 inc VAT)
Stock Item FREE* Delivery. Available in 1–2 days

Options Available

The Deluxe Pergola 3000x5000x2500mm, a statement piece for expansive outdoor spaces. This pergola offers a perfect blend of luxurious design and robust construction, making it the ideal choice for creating a large, sheltered area for relaxation or entertainment. Constructed from high-grade 6005T5 aluminium alloy, it features a rust and UV-resistant Anthracite Grey RAL 7016 finish, ensuring it looks stunning year after year. LED strip lighting surrounds the inside of the pergola, offering a relaxed ambience as the sun sets, and night falls.

The pergola’s substantial 150mm vertical posts and 200mm horizontal beams, provide exceptional structural integrity, while the 200mm-wide roof louvres offer precise control over sunlight, opening to just over 90o, allowing you full control of the sun’s rays. Designed with an inbuilt drainage system which discharges at a discreet single point, water run-off is efficiently managed, making this pergola suitable for all weather conditions.

Enhance your experience with optional remote-controlled features like shade blinds, for added privacy, and mounted curtain heaters, providing cosy warmth, all integrated into the Somfy control system for seamless operation. With safety features such as crash protection in the blinds and a 10-year structural warranty, the Deluxe Pergola 3000x5000x2500 combines elegance with peace of mind, creating the ultimate outdoor sanctuary.

Blinds Dimensions & Weight

3000mm blinds

Actual dimensions: 2700x2500mm

Weight: 40kg

5000mm blinds

Actual dimensions: 4700x2500mm

Weight: 65kg

Blinds Selection Guide

The electrical supply for the blinds can only be housed in Posts B or D. Refer to the diagram in the product gallery or p.5 of the Installation Guide, using the front of the pergola as a reference.

The terms 'Left Hand' and 'Right Hand' describe where the blind's power supply is located, not its position in the pergola.

Blinds for Beams A & B require a 'Left Hand Power Supply' blind, and blinds for Beams C & D require a 'Right Hand Power Supply' blind.

Please contact our sales team on 01753 212 950 if unsure what blinds are required for your pergola before ordering.
Dimensions

5000x3000x2500mm

Please view technical drawing in image gallery for full dimensions.
Product Type Pergola
Packaging Cardboard boxes, internal foam, and internal bubble wrap protection
Key Features

Key Features:

Controls:
  • Somfy control system
  • Remote control roof
  • Remote control LED strip light
  • Optional remote shade blinds
  • Optional remote-controlled heater
  • Mobile app for control

Drainage
  • Louvres on fall for drainage
  • Inbuilt drainage system

Construction materials & other details:

  • Rust and UV resistant
  • Aluminium frame and louvres (6005T5 Alloy)
  • Accessories in 304 Stainless Steel
  • Brass H58
  • Anthracite Grey RAL 7016
  • PVDF Coating
  • 'Chunky' 150mm format posts/200mm beams/200mm louvres

Installation:
  • 2 day install recommended
  • Must be installed by a competent professional (not suited to DIY)
  • Must be commissioned by a qualified electrician and unit to be earthed
  • Fisher ground bolts included
  • Touch up paint included
  • Silicone sealant included

Heaters:
  • Pergola comes equipped with cabling for 1 heater
  • Additional heaters can be added, however the electrical wiring needs to be done and an adequate supply for 4kwh needs to be provided.
  • A qualified electrician must be used to install additional heaters.
Material Type

Aluminium frame and louvres (6005T5 Alloy)

Accessories in 304 Stainless Steel
Application External - freestanding
Weight 391kg
Guarantee

Structural Warranty - 10 years

Somfy Warranty - 5 years

Blinds Warranty - 5 years

Transformer/electronic components - 12 months

The warranty covers material defects not those caused by extreme weather (e.g., hurricanes)
UV Resistant Yes
Drainage

Louvres on fall for drainage

Inbuilt drainage system

Easy to install - 2-3 persons required - takes approx. 2 days to build.

Must be installed by a competent professional (not suited to DIY).

Must be commissioned by a qualified electrician and unit to be earthed.

Footprint required: 3100x3100mm

Please view our installation guide for full details.

Aftercare

London Stone recommend this product is maintained by cleaning with warm, soapy water if/when required.

Please see our FAQs for more information.

Delivery Cost

Free of charge on all orders.

Restrictions apply to certain postcodes in the UK. Details will be provided at checkout. Contact us for more information.

Delivery Times

You will be presented with a delivery timeframe at checkout. Timed slots are not available.

Returns

Cancel up to 14 days from the date of delivery. Products to be returned in the same condition and packaging. No returns for bespoke or pre-sealed items.

You will be responsible for returning the product to London Stone. Collection can be made by us but this will incur a collection cost.
